Co2 lenses

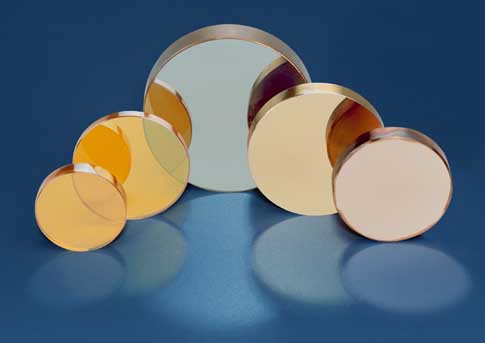

Meniscus ZnSe Lenses
Coated AR-AR @ 10.6 um
Model Number |
Diameter |
Focal Length |
Edge Thickness |
LMZ-0707-ET2.0 |
0.750"
|
0.750" |
0.080"
|
LMZ-0710-ET2.0 |
0.750" |
1.00" |
0.080" |
LMZ-0712-ET2.0
|
0.750" |
1.20" |
0.080" |
LMZ-0715-ET2.0 |
0.750" |
1.50" |
0.080" |
LMZ-0720-ET2.0
|
0.750"
|
2.00"
|
0.080" |
LMZ-0725-ET2.0
|
0.750" |
2.50"
|
0.080" |
LMZ-0730-ET2.0 |
0.750"
|
3.00"
|
0.080" |
LMZ-0740-ET2.0
|
0.750"
|
4.00"
|
0.080" |
LMZ-1010-ET2.0
|
1.00"
|
1.00"
|
0.080"
|
LMZ-1015-ET3.0 |
1.00" |
1.50" |
0.120" |
LMZ-1020-ET3.0 |
1.00" |
2.0" |
0.120" |
LMZ-1030-ET3.0
|
1.00" |
3.00" |
0.120" |
LMZ-1050-ET3.0
|
1.00" |
5.00" |
0.120" |
LMZ-1075-ET3.0
|
1.00" |
7.50" |
0.120" |
LMZ-1115-ET2.8 |
1.10" |
1.50" |
0.110" |
LMZ-1125-ET3.0 |
1.10" |
2.50" |
0.120" |
LMZ-1125-ET6.0 |
1.10" |
2.50" |
0.236" |
LMZ-1135-ET3.0 |
1.10" |
3.50" |
0.120" |
LMZ-1138-ET2.8 |
1.10" |
3.75" |
0.110" |
LMZ-1138-ET3.0 |
1.10" |
3.75" |
0.120" |
LMZ-1150-ET2.8 |
1.10" |
5.0" |
0.110" |
LMZ-1150-ET3.0 |
1.10" |
5.0" |
0.120" |
LMZ-1150-ET4.0
|
1.10" |
5.0"
|
0.160"
|
LMZ-1150-ET6.0 |
1.10" |
5.0"
|
0.236"
|
LMZ-1175-ET2.8
|
1.10"
|
7.50" |
0.110" |
LMZ-1175-ET4.0
|
1.10" |
7.50" |
0.160" |
LMZ-1175-ET6.0 |
1.10" |
7.50" |
0.236" |
LMZ-11A0-ET2.8 |
1.10" |
10.0" |
0.110" |
LMZ-1520-ET3.0
|
1.50" |
2.0"
|
0.120" |
LMZ-1525-ET6.0 |
1.50" |
2.50" |
0.236" |
LMZ-1530-ET3.0
|
1.50" |
3.0"
|
0.120" |
LMZ-1538-ET6.0
|
1.50" |
3.8"
|
0.236" |
LMZ-1538-ET7.4
|
1.50" |
3.8"
|
0.291" |
LMZ-1550-ET3.0 |
1.50" |
5.0" |
0.120" |
LMZ-1550-ET4.0 |
1.50" |
5.0" |
0.160" |
LMZ-1550-ET6.0 |
1.50" |
5.0" |
0.236" |
LMZ-1550-ET7.4 |
1.50" |
5.0" |
0.291" |
LMZ-1550-ET9.0 |
1.50" |
5.0" |
0.354" |
LMZ-1575-ET6.0 |
1.50" |
7.50" |
0.236" |
LMZ-1575-ET7.4 |
1.50" |
7.50" |
0.291" |
LMZ-1575-ET9.0 |
1.50" |
7.50" |
0.354" |
LMZ-1590-ET7.4
|
1.50" |
9.0"
|
0.291" |
LMZ-15A0-ET7.4
|
1.50" |
10.0
|
0.291" |
LMZ-2050-ET9.7 |
2.0" |
5.0" |
0.380" |
LMZ-2075-ET9.7 |
2.0" |
7.50" |
0.380" |
LMZ-20A0-ET9.7 |
2.0" |
10.0" |
0.380" |
For more information of Plano-Convex, Plano-Concave, Cylindrical, Aspheric, Diffractive,
please contact patrick@tresti-inc.com |
| |
|
|
| |
|
|
